Hi all,

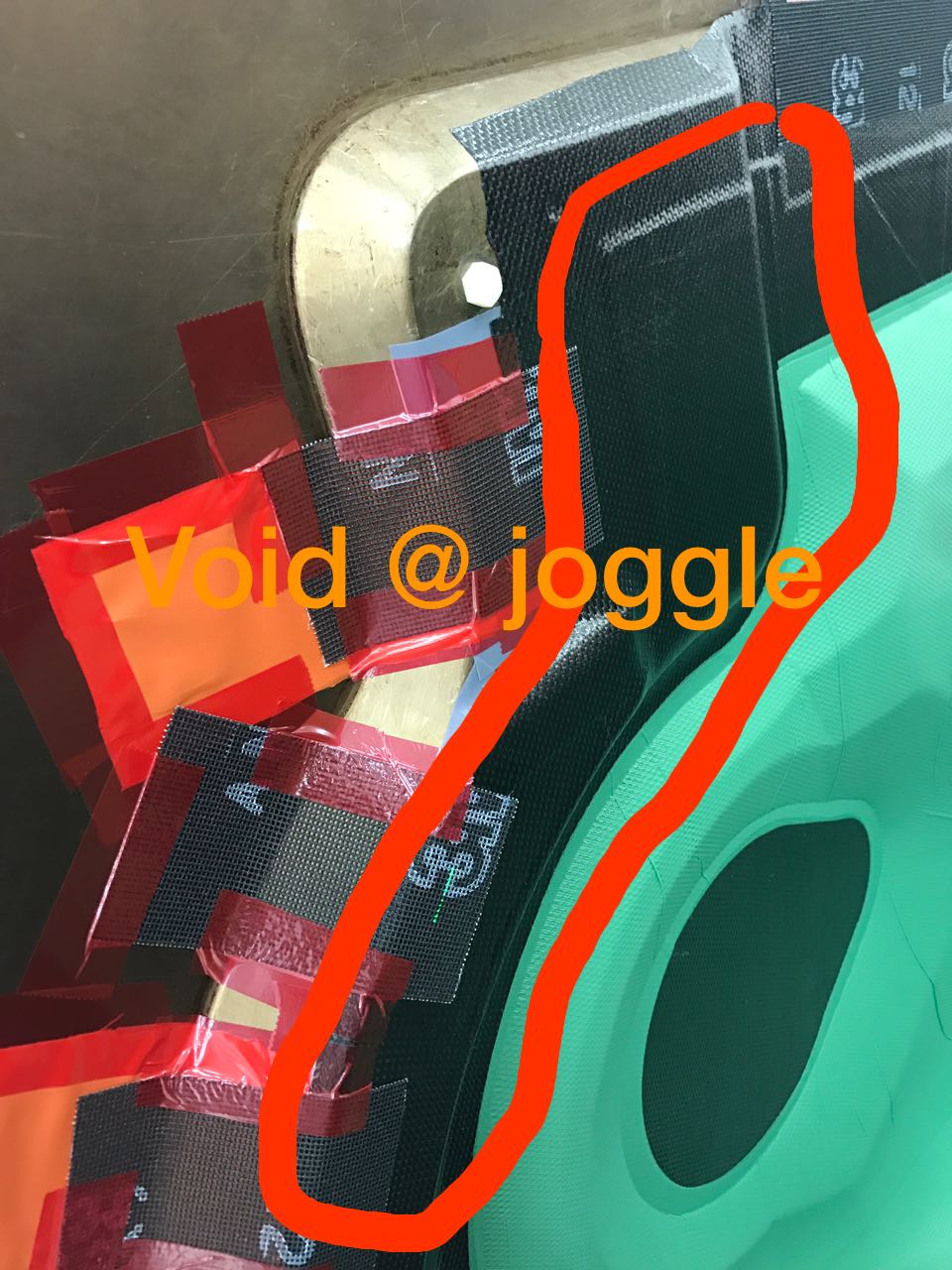

I'm working with the part ( refer pic) that has joggle area.
After cure, this part easily create a porosity and delam at this area. I believe it is because of the bridging between the first and second ply carbon woven. As in pic, we put peel ply to bleed the excess resin betwen the first and two plies.
Also in final bag, we cut off the N10 bagging at the radiius to minimize the bridging.But still the result is still inconsistent.

Need help.

Thanks
Attachments
Reply Like 2
Warren (Staff)
Warren (Staff)
Warren (Staff)
posted 7 Years Ago HOT
Supreme Being (12K reputation)Supreme Being (12K reputation)Supreme Being (12K reputation)Supreme Being (12K reputation)Supreme Being (12K reputation)Supreme Being (12K reputation)Supreme Being (12K reputation)Supreme Being (12K reputation)Supreme Being (12K reputation)
Group: Administrators
Posts: 2.5K, Visits: 7.9K
Have you got any more details about the mould, cure cycle, type of resins and fabrics used as it is not so clear from the picture what exactly has happened. ie what is the green section?

Warren Penalver
Easy Composites / Carbon Mods - Technical Support Assistant
Reply Like 2
scottracing
scottracing
scottracing
posted 7 Years Ago HOT
Supreme Being (2.2K reputation)Supreme Being (2.2K reputation)Supreme Being (2.2K reputation)Supreme Being (2.2K reputation)Supreme Being (2.2K reputation)Supreme Being (2.2K reputation)Supreme Being (2.2K reputation)Supreme Being (2.2K reputation)Supreme Being (2.2K reputation)
Group: Forum Members
Posts: 460, Visits: 5.2K
Why are you placing the peel ply between plies? This isnt a good idea. If you want to bleed resin our use perforated release film in that area to bleed out into the bleeder cloth.
Reply Like 2
ejump80
ejump80
ejump80
posted 7 Years Ago
Junior Member (8 reputation)Junior Member (8 reputation)Junior Member (8 reputation)Junior Member (8 reputation)Junior Member (8 reputation)Junior Member (8 reputation)Junior Member (8 reputation)Junior Member (8 reputation)Junior Member (8 reputation)
Group: Forum Members
Posts: 2, Visits: 104
Below details of the product;
1) Sandwich panel-fabricate using carbon fiber reinforced prepreg,5HS fabric/280g/m2/180 deg curing with nomex core.
2) cure with 2 step cure cycle, dwell at 105 deg C for 30 minutes, then continue heat up at 180 deg C, stsrt 2nd dwell when reach 175deg c for 160 minutes then start cool down until 60 deg C
.Full vacuum start cure and reduce until -0.2bars when pressure reach 1.4bar.
Cure pressure 3 bars

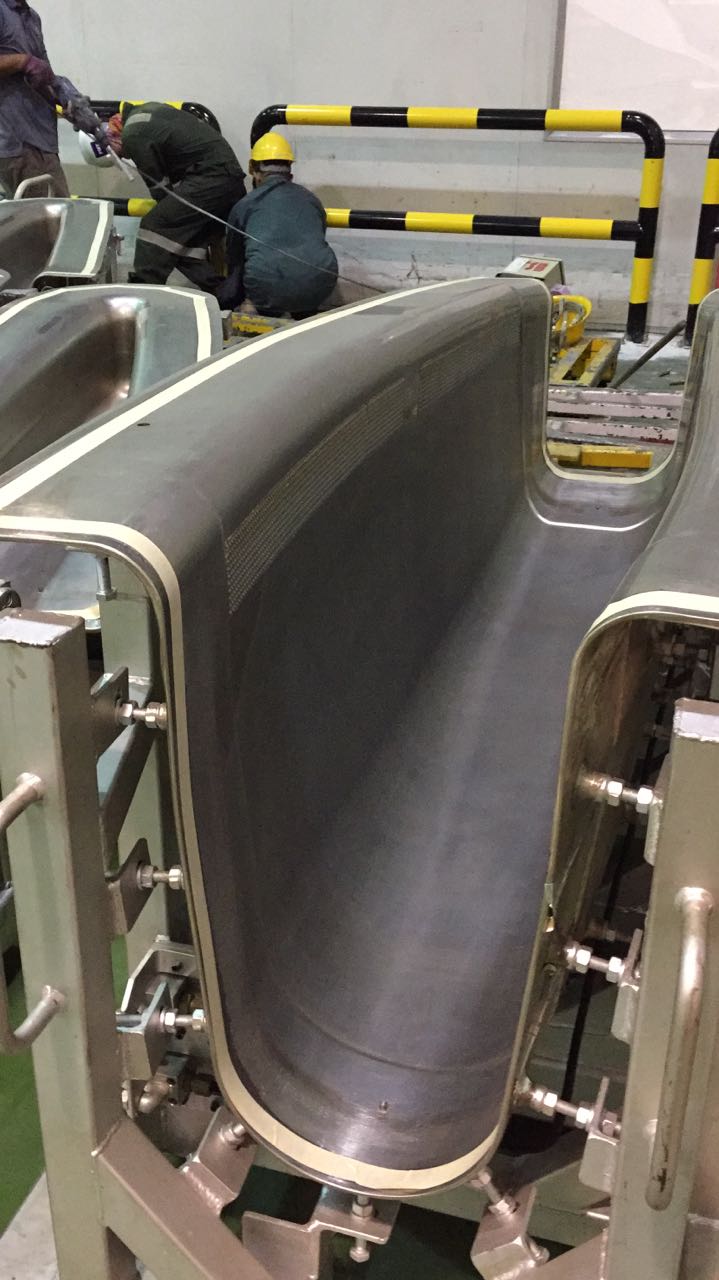

3)Tool made from nickel

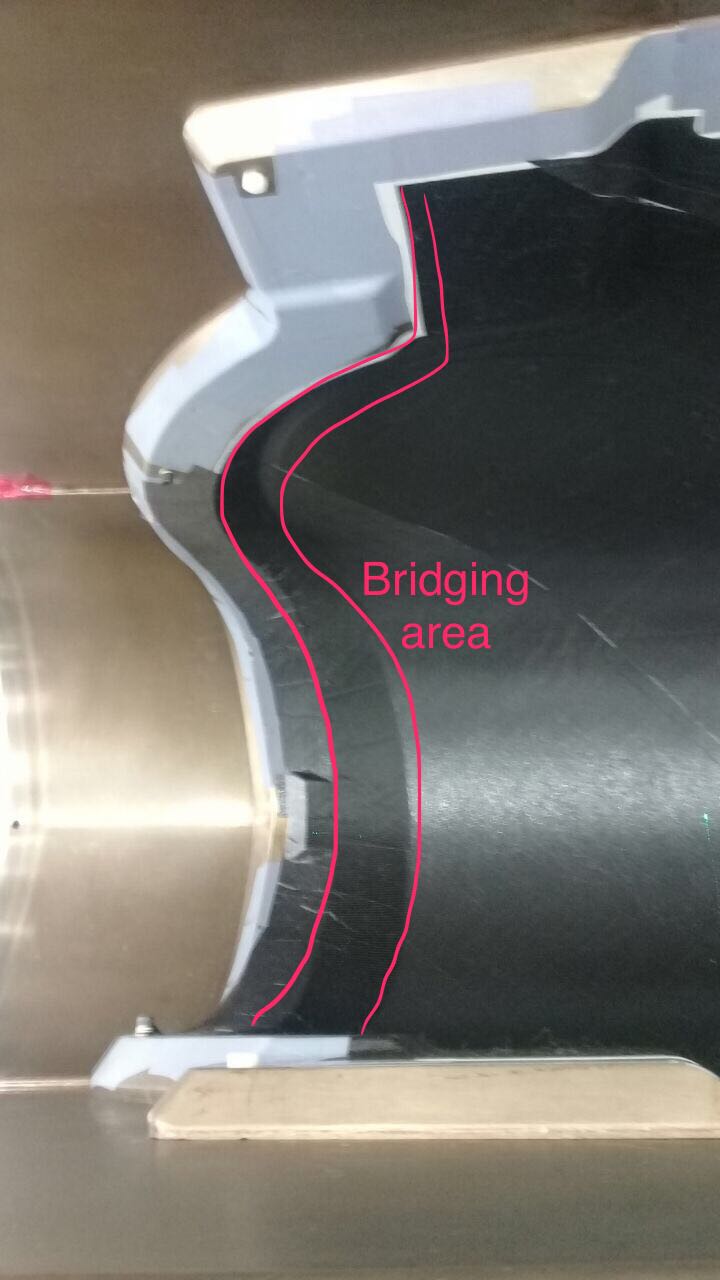

Currently, we have problem at the joggle area because the 1st and 2nd layer plies lack of contact on the mould surface which create bridging and delamination.
Attachments
Edited 7 Years Ago by ejump80
Reply Like 1
