Wet layup and vacuum


Author
Message
Ronny
Ronny
Supreme Being (386 reputation)Supreme Being (386 reputation)Supreme Being (386 reputation)Supreme Being (386 reputation)Supreme Being (386 reputation)Supreme Being (386 reputation)Supreme Being (386 reputation)Supreme Being (386 reputation)Supreme Being (386 reputation)
Group: Forum Members
Posts: 58, Visits: 401
Hi
Im new to this and tried skinning a fuse cover.

I did the following
rough sanding with 400 grit
Rinse with industrial cleaner and lighter fluid
One layer with EC epoxy base coat
Then i waited approx 2hours when it was tacky with no paint coming off.
Then i applied one 200g 2twill pro finish layer, cut it formed it and put masking tape around the edges of the carbon.
A thick layer of laminating resin was applied.
After this i covered all the carbon area with peel ply and on top of that a layer of breather cloth and the bag connector.
Then sealed it all with plastic and managed to get a leak free seal.
Let it stay over the night and removed the peel ply.

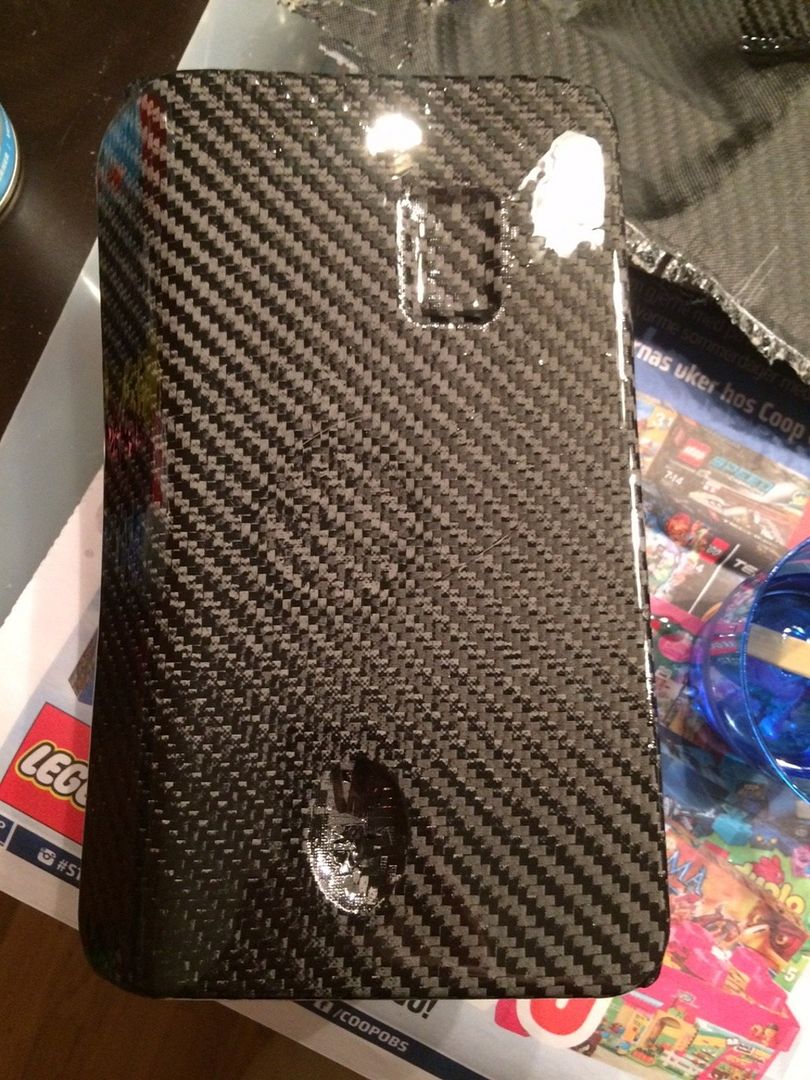

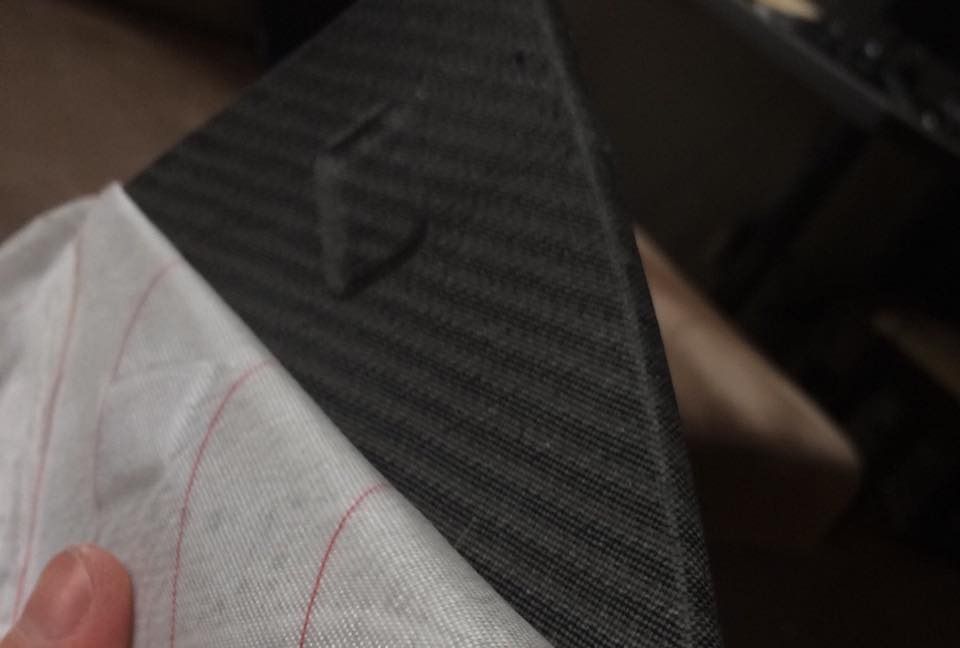

what i found was that the carbon was firmly in plase, but there was alot of print through and the carbon looks almost dry.

So when using this technique do i have to put on additional layers of resin and vacuum bag it again and again?
How do i reduce the peel ply print on the carbon?
