pre-preg pinholes.. driving me crazy
pre-preg pinholes.. driving me crazy
Post Reply
Like
2
pre-preg pinholes.. driving me crazy
View
Flat Ascending
Flat Descending
Threaded
Options
Subscribe to topic
Print This Topic
Goto Topics Forum
Author
Message
roger sbk composites
roger sbk composites
posted 11 Years Ago
ANSWER
HOT
Topic Details
Group: Forum Members
Posts: 17,
Visits: 163
this is the third part that comes out exactly the same and i've done 3 diff things so far.... my kitchen oven minum is 76c so i leave that 2 hours and then take it to 110c this time i added peelply on the edges but nothing... the stack is as fallowed 2 layers of pre-preg aviation no face side... ... eassycomposite unperforated release film and breather all over the mold put inside a bag and full vac... any ideas guys... this is dirving me crazy already
Reply
Like
2
Reply
roger sbk composites
roger sbk composites
posted 11 Years Ago
ANSWER
HOT
Post Details
Group: Forum Members
Posts: 17,
Visits: 163
ok after cooking for 8 hours at 60C then 1 hour at 110 here is the results i can count about 5-6 pin holes only compared to a million on my other fast cooking parts apart from the voids where clearly this is autoclave fabric i thought id test with this useless fabric to me and the key to getting less pinholes everytime is... cooking low temp for long time and adding peel ply under the first layer on the flange area... the pin holes are on the side where no peel ply was placed
so tomorrow i will continue testing this time even longer low cooking about 14-16 hours i am already working on getting out of autoclave fabric im doing all this testing to help other who might have pin hole problems with pre-preg im using the wrong fabric and im still getting an acceptable result from what was part 1 that was horrible
Reply
Like
2
GO
Merge Selected
Merge into selected topic...
Merge into merge target...
Merge into a specific topic ID...
Open Merge
Threaded View
Threaded View
pre-preg pinholes.. driving me crazy
roger sbk composites
-
11 Years Ago

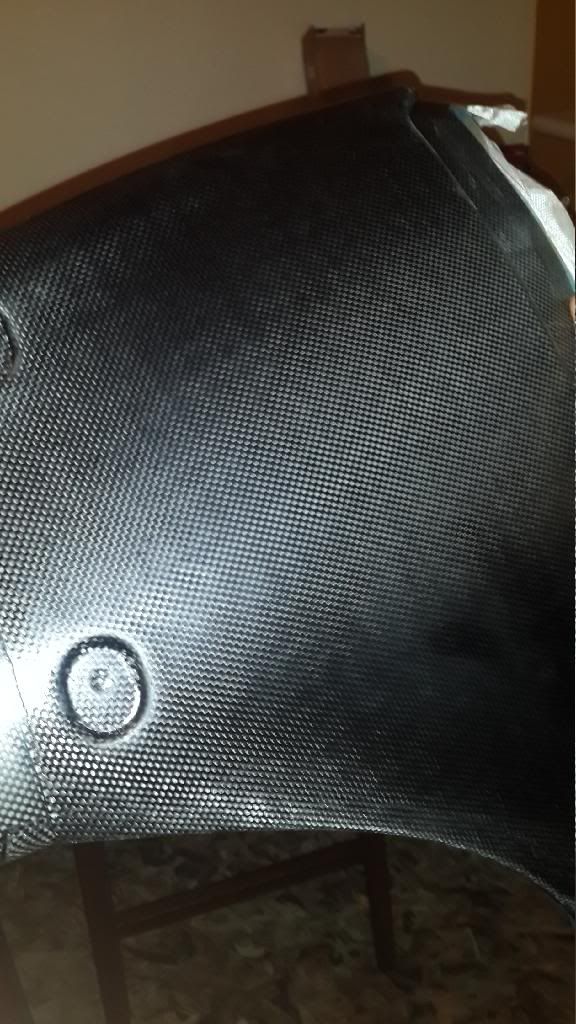

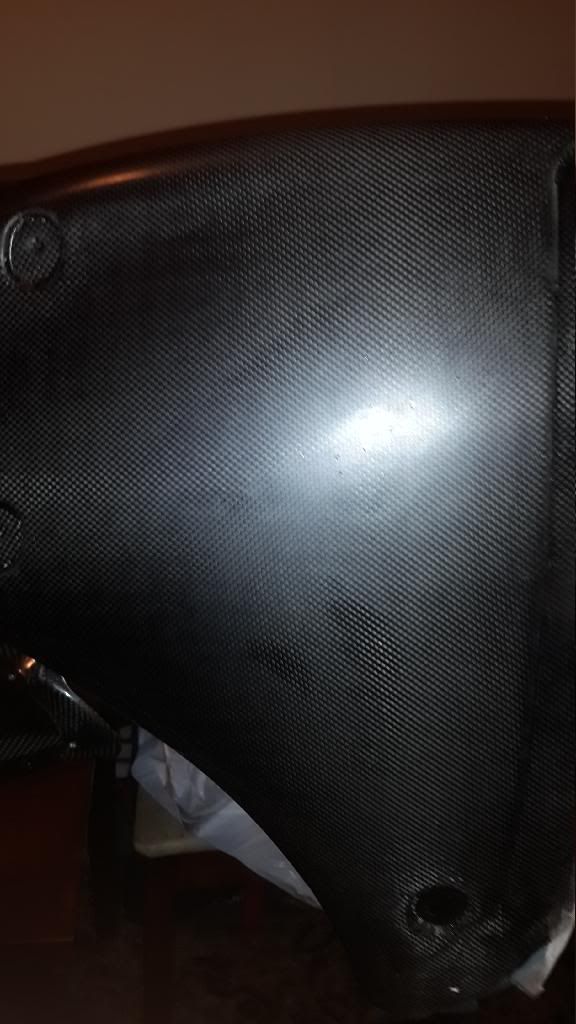

left one is the previous one.. wich i started sanding to try and recover the part......
roger sbk composites
-
11 Years Ago
Looks like bridging from the pictures. You haven't got the cloth into the recesses in the mould....
wozza
-
11 Years Ago
Yep looks like bridging on the corners and the pin holes are going to be a problem until you can...
morepower
-
11 Years Ago
i put breather EVERYWHERE.......
roger sbk composites
-
11 Years Ago
more power.... want to sell me those plans for the cardboard box oven please :-)
roger sbk composites
-
11 Years Ago
Ok... Cool.. I know Nick from 666 and I know who made some of his moulds... long story and quite...
morepower
-
11 Years Ago
I've made this video a few months ago, using the prepreg for Easycomposites....
matthieutje65
-
11 Years Ago
thanks guy.. ive seen that video im subscribed to you... i know about the eassy preg... the problem...
roger sbk composites
-
11 Years Ago
Yes I cut the sides and matched them in.... Plain weave is harder to find I use a plain weave but it...
morepower
-
11 Years Ago
The thing you could do is use easypreg finishing layer behind that plain weave to add some resin...
matthieutje65
-
11 Years Ago
[quote][b]matthieutje65 (20/01/2014)[/b][hr]The thing you could do is use easypreg finishing layer...
morepower
-
11 Years Ago
i have a crazy idea let me know if this would work.. well i live in tropical country of costa rica...
roger sbk composites
-
11 Years Ago
Haha..... the sun might just do it..... I will sort something a little more specific and try and...
morepower
-
11 Years Ago
well for the ones watching and wondering i will be making another test today... this time with...
roger sbk composites
-
11 Years Ago
ok im running a second test on a second vac pump in my kitchen oven... this time i put the mold...
roger sbk composites
-
11 Years Ago
Ramping up is not just increasing the temp by 20 degrees, it is linear increase of temperature,...
baja_patient
-
11 Years Ago

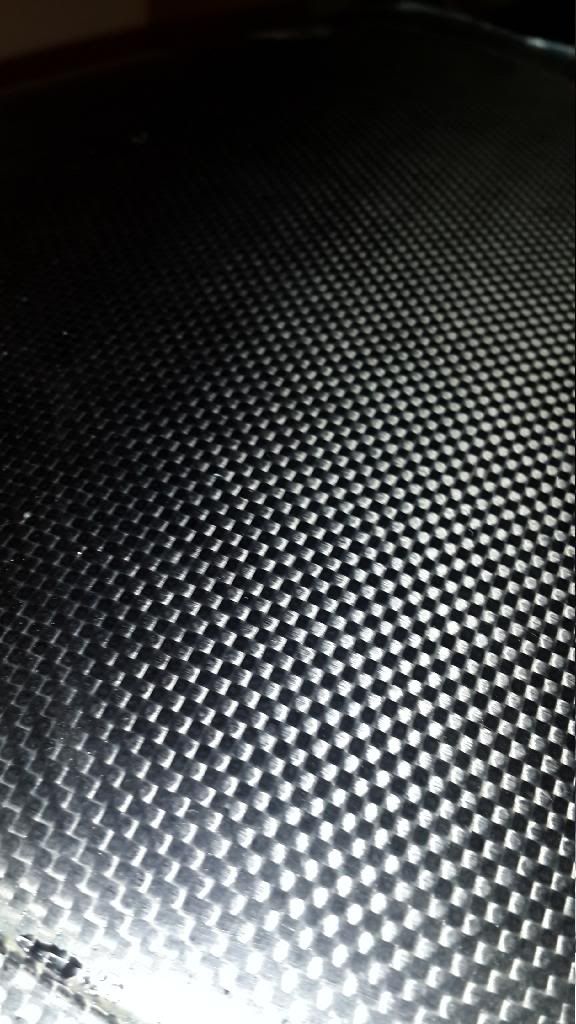

ok after cooking for 8 hours at 60C then 1 hour at 110 here is the results i can count about 5-6 pin...
roger sbk composites
-
11 Years Ago
looking better... Once you get a part that works you need to do it about 3 times to make sure you...
morepower
-
11 Years Ago
def cooking low temp is the trick compared to the other horrible fast cooked parts i say its not so...
roger sbk composites
-
11 Years Ago
found a picture of the first part fast cooked...
roger sbk composites
-
11 Years Ago
thanks to the endless help from more poweri decided to try out the VARI-PREG fabric from eassy...
roger sbk composites
-
11 Years Ago
That is not bad.... As you say, you need to get your layup techniques down a little more.. You need...
morepower
-
11 Years Ago
You have bridging for sure. You can see how some of the resin has tried to fill the voids and...
fgayford
-
11 Years Ago
Hey I am new here but I am mechanical engineer and here are my thoughts. You have bridging for sure...
combustioncraig
-
11 Years Ago
hey guys i have some updates... i found that bridging was the problem and also my layup as in plain...
roger sbk composites
-
11 Years Ago
Nice to see progress mate, got any more pics of ur oven? Inside oven? Regards
Djekouk
-
11 Years Ago
yeah sure... after two hours of tunning the oven... and drilling venting holes i finaly got it...
roger sbk composites
-
11 Years Ago
Whats the black thing on the white heater? In ur last pic. Do u use only 1 external heater blower?
Djekouk
-
11 Years Ago
Cool design :-)
Djekouk
-
11 Years Ago
Get one of these too... It can be used on the parts you cook as a check of the actual temp of the...
morepower
-
11 Years Ago
the black thing is a second heater as that 1500 watt max temp was 60c constant running so i added...
roger sbk composites
-
11 Years Ago
[quote][b]roger sbk composites (22/02/2014)[/b][hr]the black thing is a second heater as that 1500...
Djekouk
-
11 Years Ago
No problem let go on pm
roger sbk composites
-
11 Years Ago
