Tooling gelcoat imperfections on mold surface


Author
Message
Coldever
C
Supreme Being (78 reputation)Supreme Being (78 reputation)Supreme Being (78 reputation)Supreme Being (78 reputation)Supreme Being (78 reputation)Supreme Being (78 reputation)Supreme Being (78 reputation)Supreme Being (78 reputation)Supreme Being (78 reputation)
Group: Forum Members
Posts: 12, Visits: 187

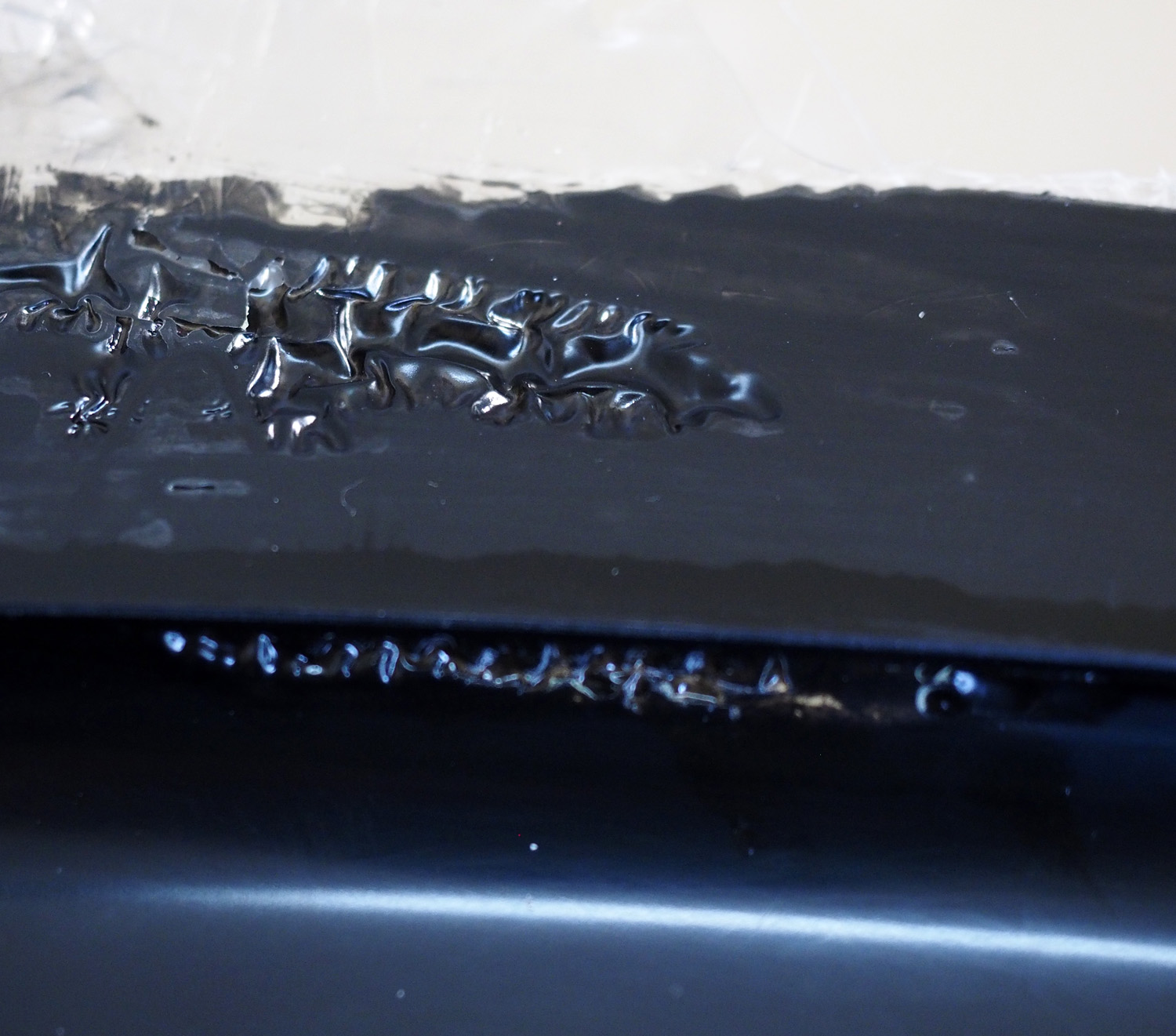

I'm doing a new mold for a bike project and 98% of my mold surface is perfect but I got a few imperfections on the gel coat surface (see attached photo). Does anyone have a clue what could be causing them and how I can avoid them on the next mold? My mold making process:

- I had a painted mdf plug attached to a melamine board which acts as the parting surface.
- 6 x layers of Easylease 15 mins apart
- 1 layer of Meguiars no.8 after waiting an hour
- Filleting wax applied to the plug/base joint.
- 2 layers of Uni-Mould Tooling Gel Coat applied 2 hours apart
- Layer of 100g chopped glassfiber laminated on top with vinylester resin the next day
- Later several layers of 300g chopped glassfiber laminated with vinylester
- Demoulded after about 30 hours of curing in about 20 degrees.

Btw, demoulding was super easy. First time using Easy-Lease - works like a charm!

Attachments
Edited 5 Years Ago by Coldever
