Questions about epoxy resin and demolding product


Author
Message
Tiber
Tiber
Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)
Group: Forum Members
Posts: 3, Visits: 10
hi all

I make model airplanes last year i learnt a lot of carbonfibre in a company where they make real airplane parts. And now i will build my first carbon model plane. I don't have experience in making carbonfibre parts and I also don't have a vacuum table (i have tried to make it but it failed) but i have made a wooden mdf mold and i'm gonna make a plaster female mold of the male wooden mold. Then i can put the woven carbon into the plaster mold en add the epoxy resin and then I can compress these two molds together to create the effect of the vacuum.

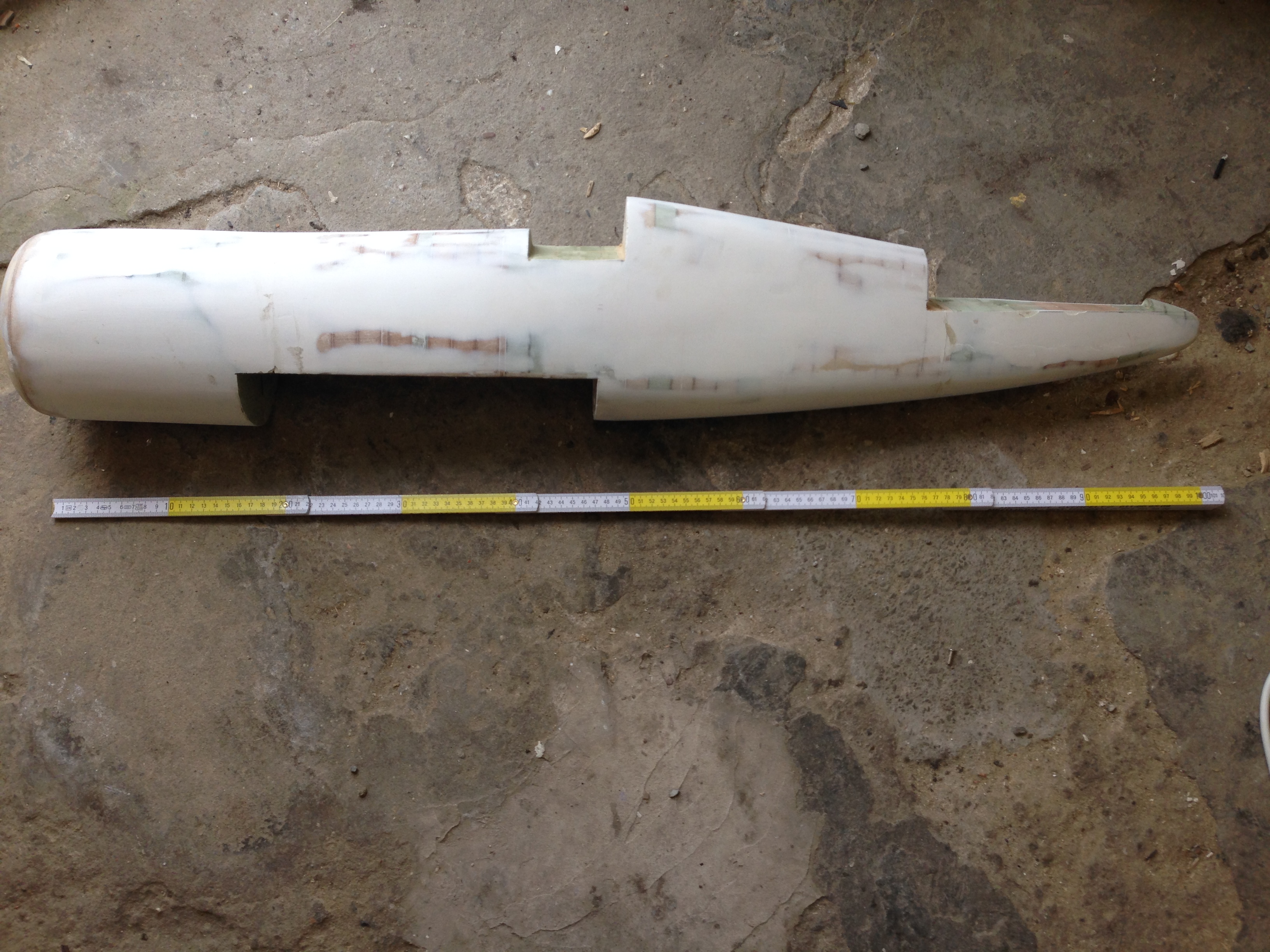

In attachement you can find my wooden mold.

I have a few questions:

Which epoxy resin is the best to use for these parts to dry at 20°C because i don't have an autoclave? I found on the site the easy-lease chemical release agent works this product also on plaster and the mdf mold? And is it a qood idea to do it with the 2 molds?

thank you for your time and sorry for my bad English
Attachments
Photo 6-05-14 17 37 12.jpg (568 views, 2.00 MB)
Matthieu Libeert
Matthieu Libeert
Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)
Group: Forum Members
Posts: 955, Visits: 3.4K
the idea of working with 2 moulds is ok but you need to keep in mind that your laminate will have some thickness as well.
To be honest I would personally never use a MDF mould or Plaster, its way to porous and it will probably leave a bad finish on your part or contaminate your resin...
But could work, never tested it upto now.

You could use your MDF mould if you seal it with a topcoat and sand it or use a 2K spraypaint

Hope this gives you an idea, maybe more can help you a bit more!

Matthieu Libeert
Founder MAT2 Composites X Sports
website:
www.mat2composites.com




Tiber
Tiber
Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)
Group: Forum Members
Posts: 3, Visits: 10
Thanks for your information
But i have another question with is a good epoxy resin to use for the woven carbon? (dry at normal temperature (15~20°C))

thank you for your time
Edited 11 Years Ago by Tiber
Matthieu Libeert
Matthieu Libeert
Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)Supreme Being (7.5K reputation)
Group: Forum Members
Posts: 955, Visits: 3.4K
The laminating epoxy from Easycomposites should be just fine, or any laminating epoxy you can find

Matthieu Libeert
Founder MAT2 Composites X Sports
website:
www.mat2composites.com




Tiber
Tiber
Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)Junior Member (19 reputation)
Group: Forum Members
Posts: 3, Visits: 10
Thanks!
Jonty
Jonty
Forum Member (34 reputation)Forum Member (34 reputation)Forum Member (34 reputation)Forum Member (34 reputation)Forum Member (34 reputation)Forum Member (34 reputation)Forum Member (34 reputation)Forum Member (34 reputation)Forum Member (34 reputation)
Group: Forum Members
Posts: 4, Visits: 31
Make sure you paint the buck with 2k paint as above advice, 1k will react with the mould.

Mdf with filler should be fine as a base for paint; i think it's good to polish the painted buck surface but don't worry too much about very fine scratches as the tooling gel coat will have a slight orange peel texture so I put my effort in to the finished mould not the buck.
