Manu
Manu
posted 11 Years Ago
ANSWER
Topic Details
Group: Forum Members
Posts: 23,
Visits: 435

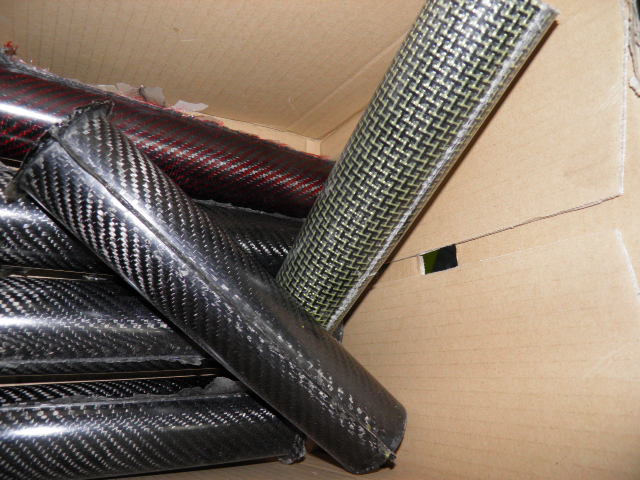

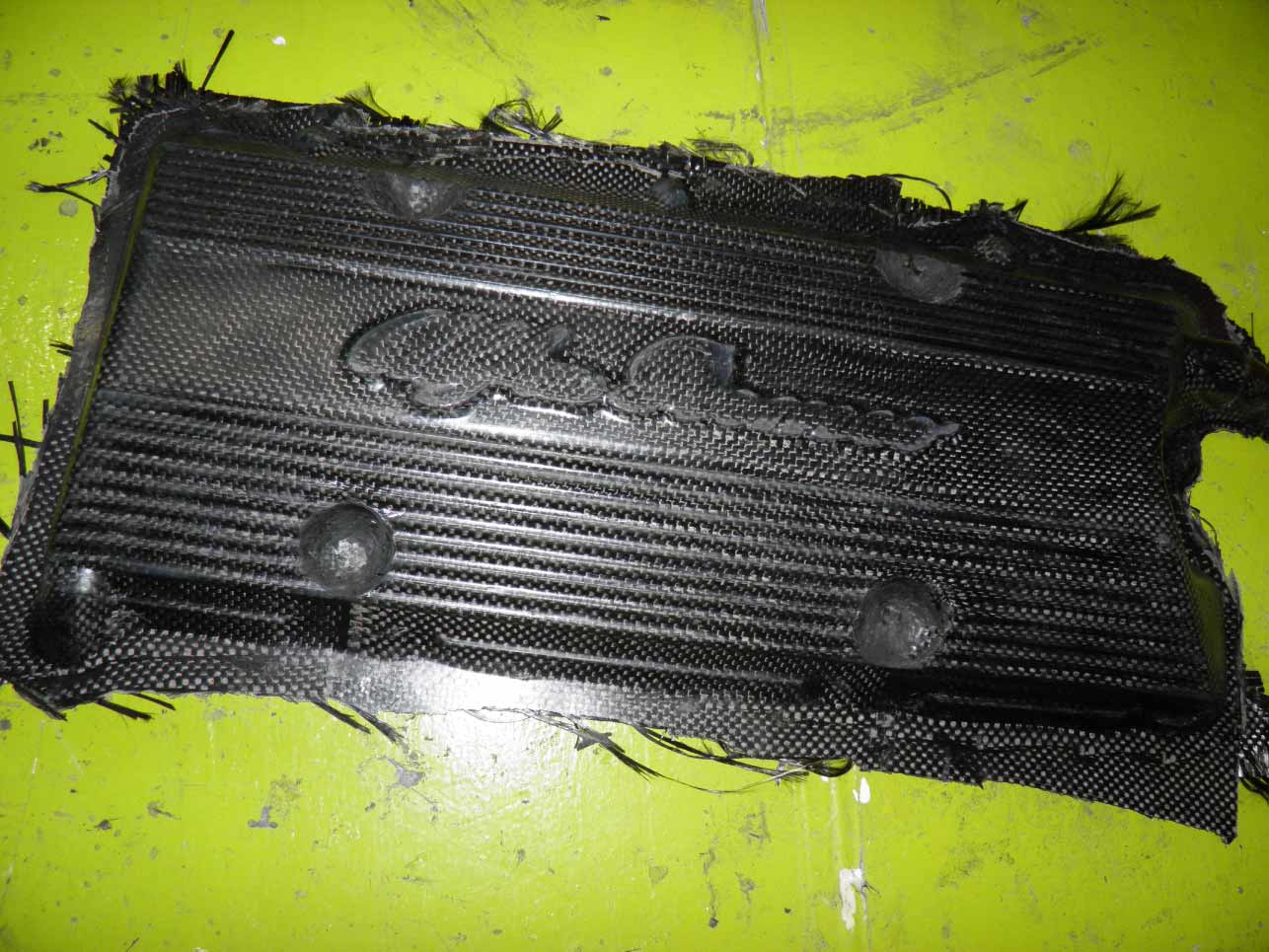

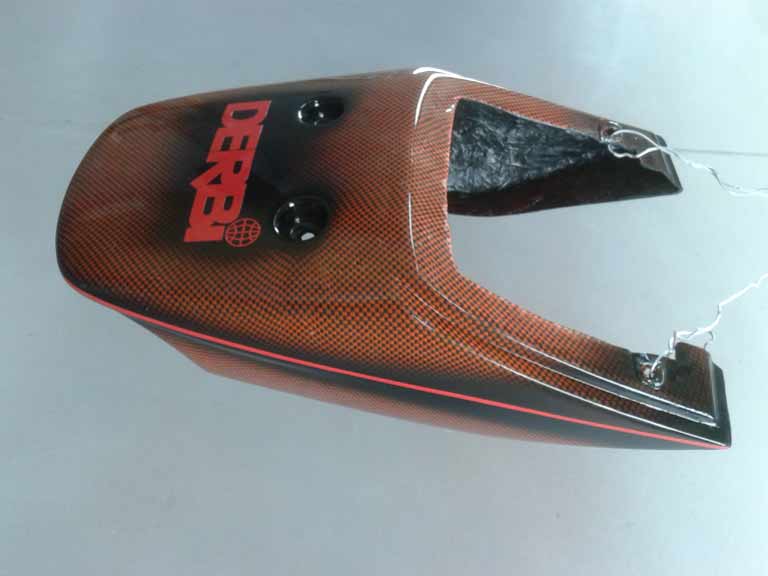

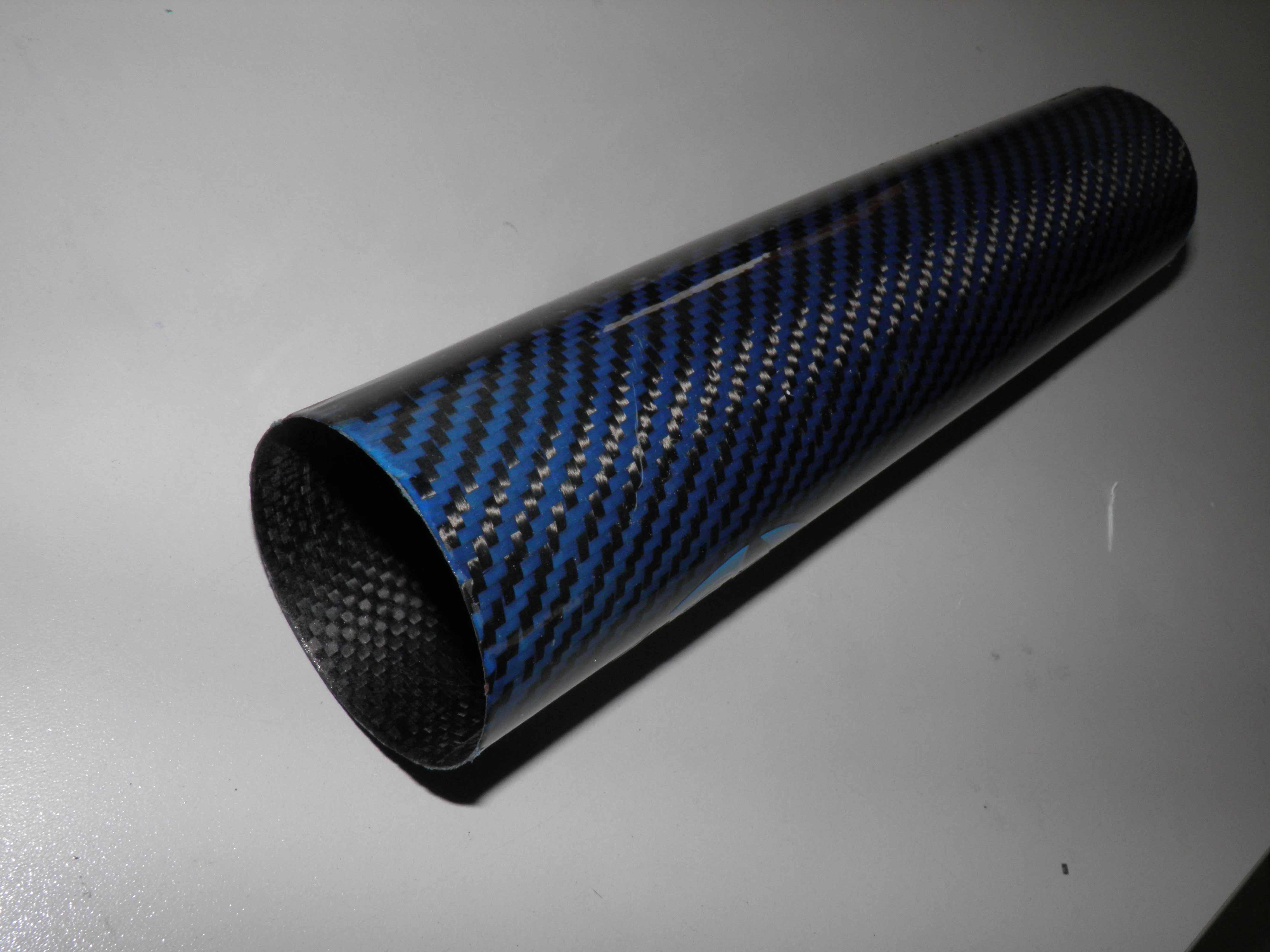

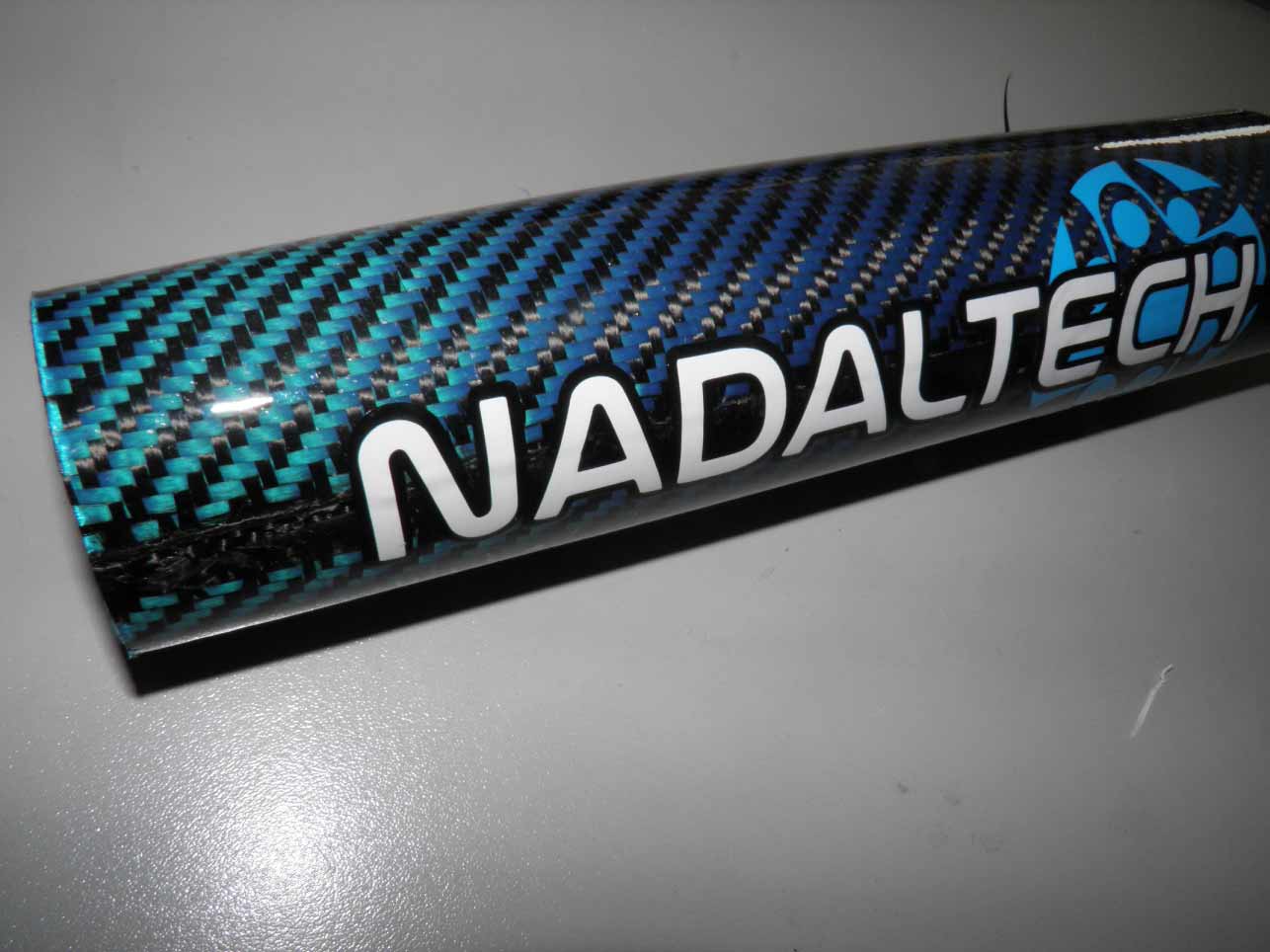

hello! Here are a few sample pieces I've made lately with products easycomposites
www.ktuning.es
https://www.facebook.com/Ktuning.es/
www.carboncycleparts.com
https://www.facebook.com/CarbonCycleParts/
Attachments
(
734 views,
144.00 KB
)
(
716 views,
71.00 KB
)
(
680 views,
400.00 KB
)
(
692 views,
290.00 KB
)
(
704 views,
24.00 KB
)
Reply
Like
1
fgayford
fgayford
posted 11 Years Ago
ANSWER
Post Details
Group: Forum Members
Posts: 433,
Visits: 1.2K
Hi Manu
Nice work. How did you do the tube????
Thanks
Fred
Reply
Like
1
Manu
Manu
posted 11 Years Ago
ANSWER
HOT
Post Details
Group: Forum Members
Posts: 23,
Visits: 435
Sorry, it's top secret ...

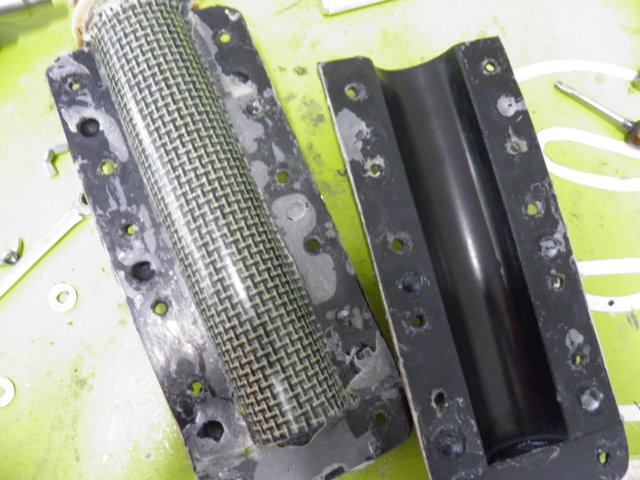

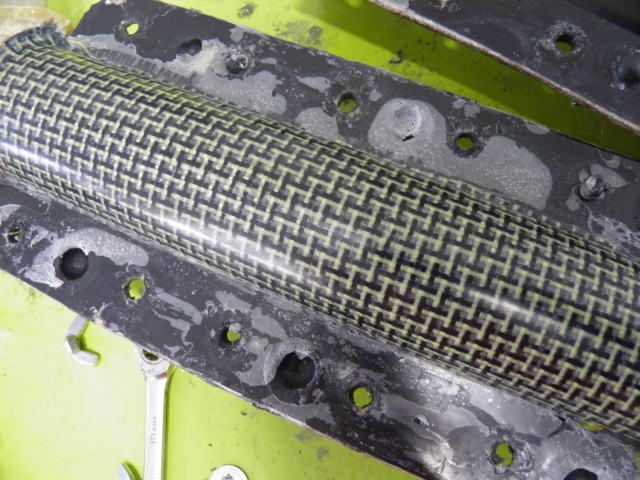

... just kidding! the outer part is made of a 2 parts mold with unimold resin and fiberglass. The inner cylinder have manufactured a silicone inflated with a tire valve. I can also compact by compression rather than vacuum at a maximum pressure of 4 bar, perhaps with a more oversized mold can put more pressure at the moment is enough because I make a short run of units. If you want I can take pictures to manufactured processes.
www.ktuning.es
https://www.facebook.com/Ktuning.es/
www.carboncycleparts.com
https://www.facebook.com/CarbonCycleParts/
Reply
Like
2
Matthieu Libeert
Matthieu Libeert
posted 11 Years Ago
ANSWER
HOT
Post Details
Group: Forum Members
Posts: 955,
Visits: 3.4K
please show us some pictures on how you did it
Great work Btw!
Matthieu Libeert
Founder MAT2 Composites X Sports
website:
www.mat2composites.com
Reply
Like
2
fgayford
fgayford
posted 11 Years Ago
ANSWER
HOT
Post Details
Group: Forum Members
Posts: 433,
Visits: 1.2K
Sorry to here that on a sharing composite forum like this.
I know of 4 or 5 ways to do it I was just wondering which of these methods you used!
Fred
Sorry I didn't see the bottom of your post.
Fred
Edited
11 Years Ago by
fgayford
Reply
Like
2
Manu
Manu
posted 11 Years Ago
ANSWER
HOT
Post Details
Group: Forum Members
Posts: 23,
Visits: 435
Quiet, apologized, is Spanish humor. I think the best way to cf tube is as I have made. But if I see a better way I'll be happy to try it. Today I make a tube, makes photos so you can see the process.
www.ktuning.es
https://www.facebook.com/Ktuning.es/
www.carboncycleparts.com
https://www.facebook.com/CarbonCycleParts/
Reply
Like
2
Manu
Manu
posted 11 Years Ago
ANSWER
HOT
Post Details
Group: Forum Members
Posts: 23,
Visits: 435

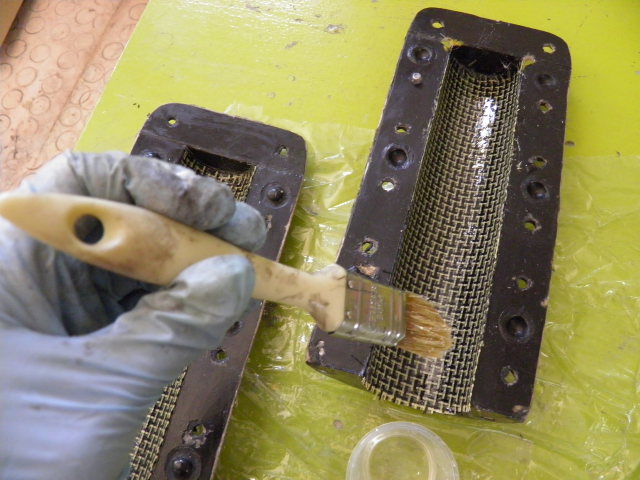

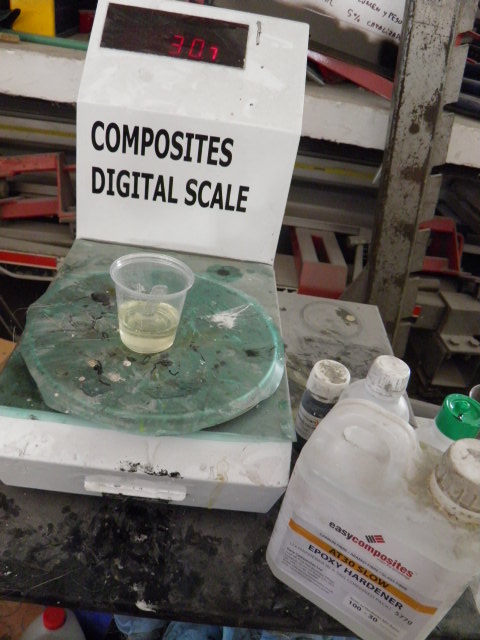

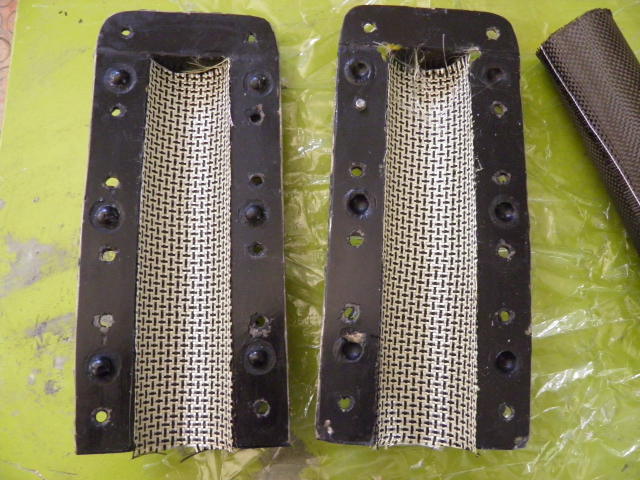

1 part, laminating!
www.ktuning.es
https://www.facebook.com/Ktuning.es/
www.carboncycleparts.com
https://www.facebook.com/CarbonCycleParts/
Attachments
(
624 views,
85.00 KB
)
(
599 views,
88.00 KB
)
(
610 views,
94.00 KB
)
(
733 views,
86.00 KB
)
(
582 views,
86.00 KB
)
Reply
Like
2
Matthieu Libeert
Matthieu Libeert
posted 11 Years Ago
ANSWER
Post Details
Group: Forum Members
Posts: 955,
Visits: 3.4K
Thanks! looks great! Can you tell me how you made the blatter with silicone?
Matthieu Libeert
Founder MAT2 Composites X Sports
website:
www.mat2composites.com
Reply
Like
1
Manu
Manu
posted 11 Years Ago
ANSWER
HOT
Post Details
Group: Forum Members
Posts: 23,
Visits: 435

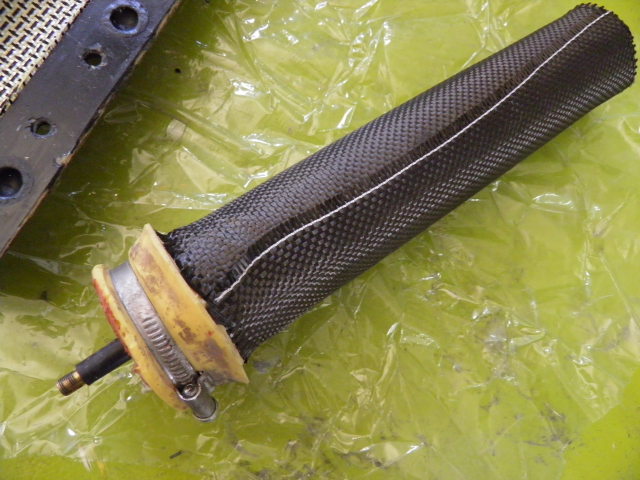

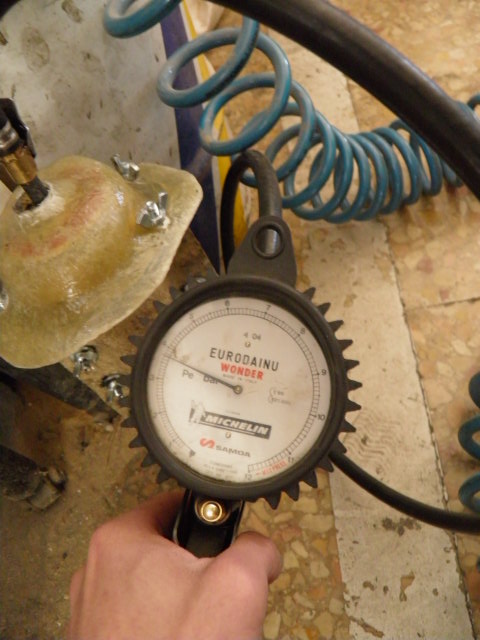

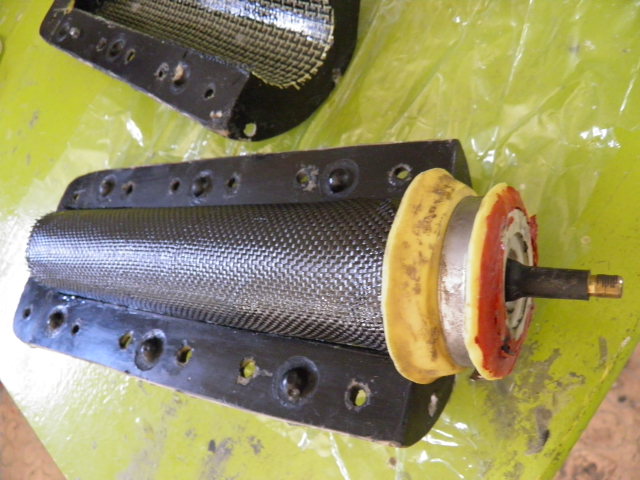

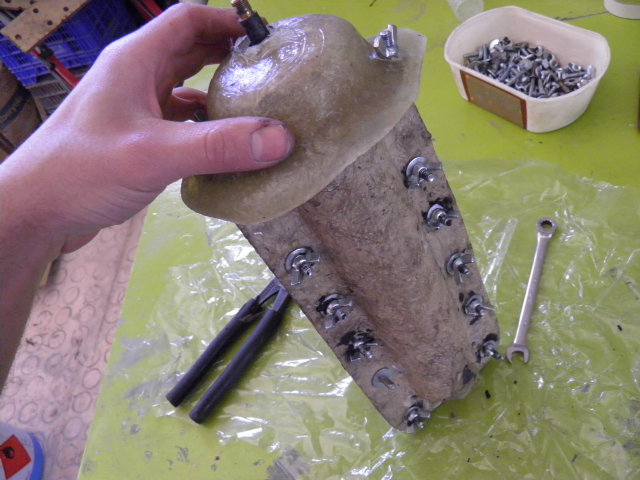

2 part, inflate!
www.ktuning.es
https://www.facebook.com/Ktuning.es/
www.carboncycleparts.com
https://www.facebook.com/CarbonCycleParts/
Attachments
(
579 views,
84.00 KB
)
(
608 views,
93.00 KB
)
(
600 views,
86.00 KB
)
(
604 views,
85.00 KB
)
(
588 views,
84.00 KB
)
Reply
Like
2
Manu
Manu
posted 11 Years Ago
ANSWER
HOT
Post Details
Group: Forum Members
Posts: 23,
Visits: 435
it is a bit complicated to explain, because I do not speak English, I do a new mold more robust to inflate more pressure makes photos so you can see better as manufactured.
www.ktuning.es
https://www.facebook.com/Ktuning.es/
www.carboncycleparts.com
https://www.facebook.com/CarbonCycleParts/
