Hi everyone Smile

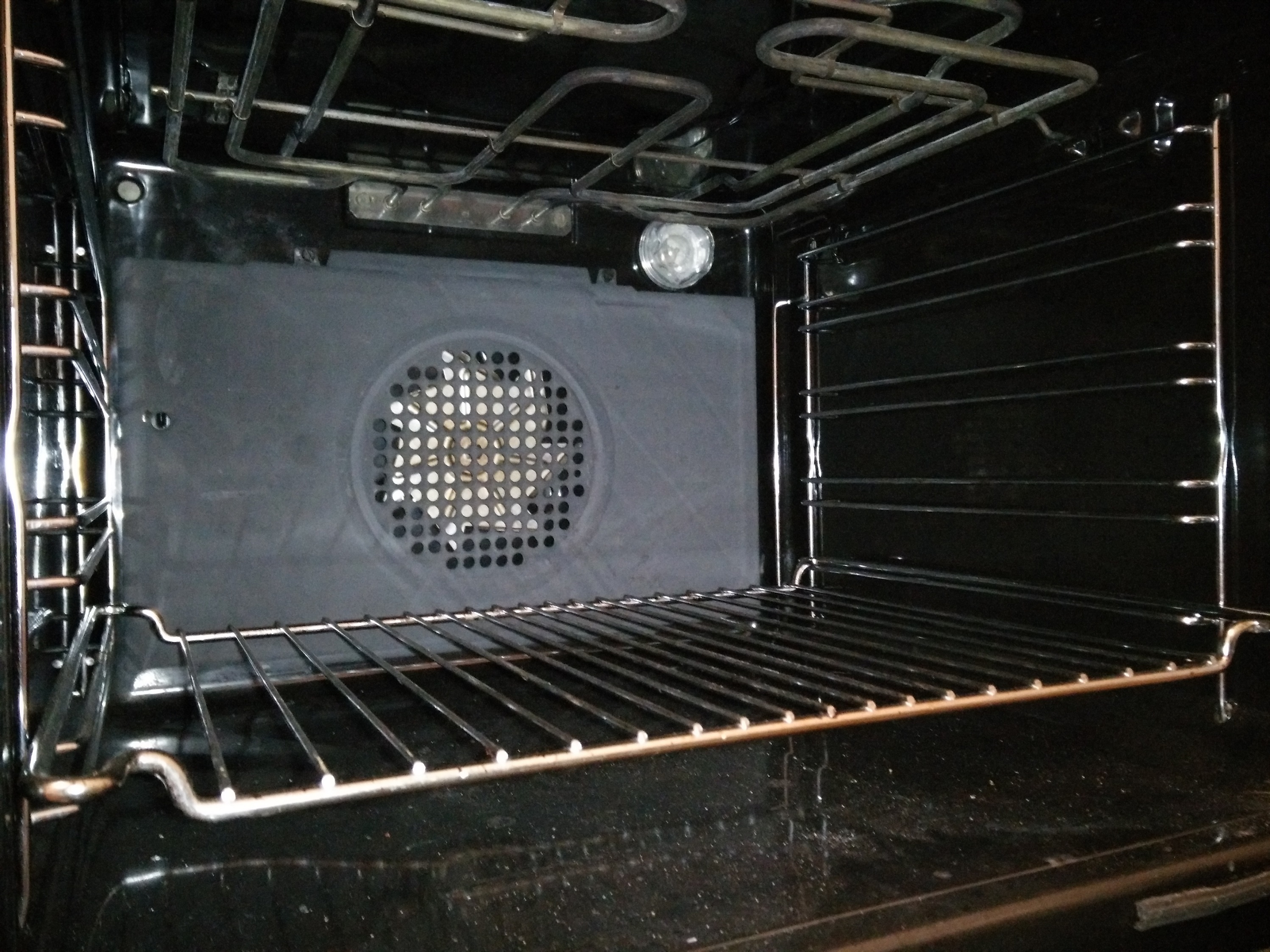

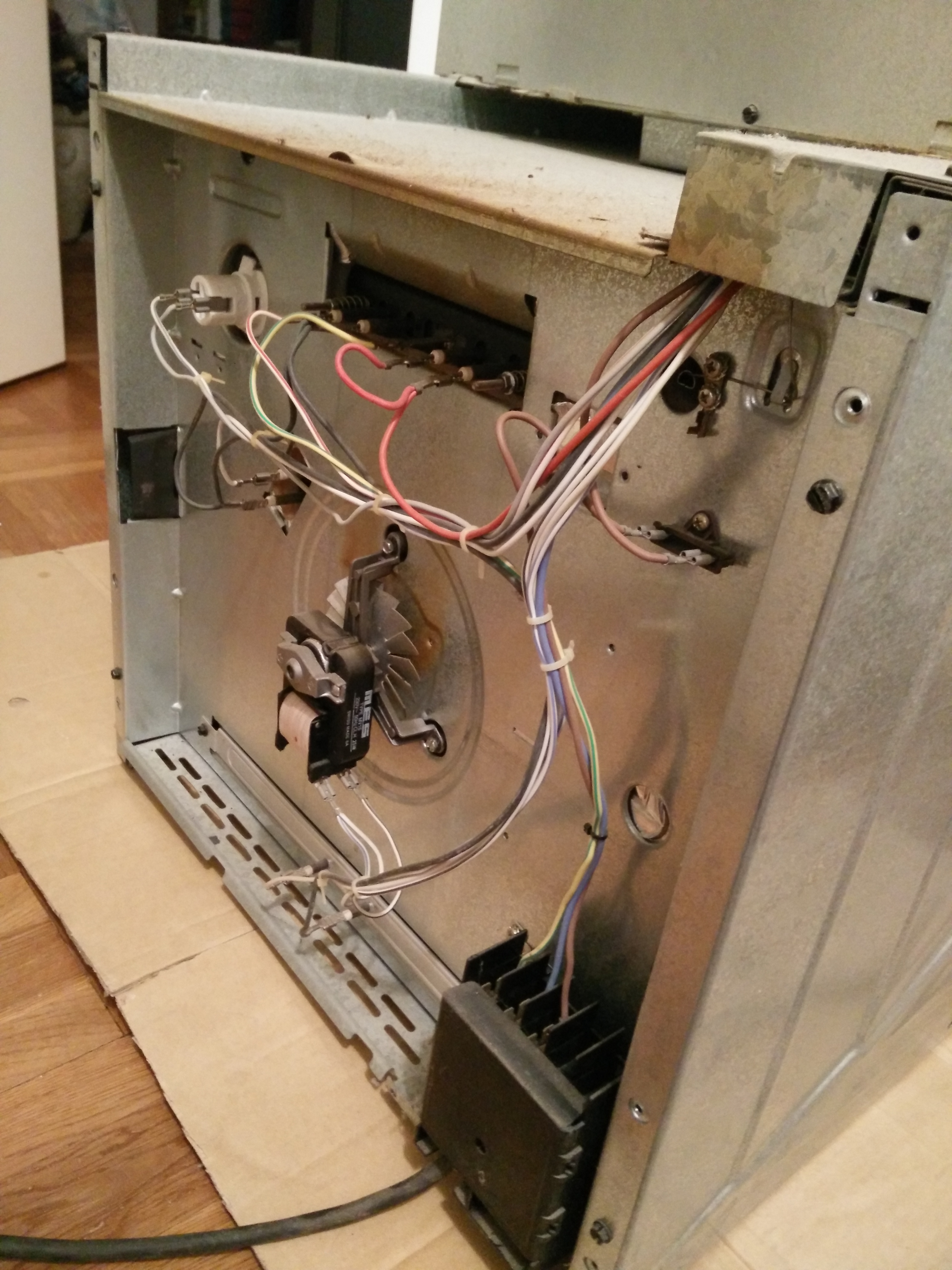

As I said in the title, I'm trying to build an oven for composites with some parts of my old house oven.
Some time ago I saw @Darren (Link topic: http://www.talkcomposites.com/16787/Oven-build) building an oven, and I would like to build something similar..so the question is..do you think I could use some parts of this?
I will need help for the electrical part of the work Whistling

Wainting your opinion, have a good day Smile
Attachments
Jacopo Carbonio
Jacopo Carbonio
Supreme Being (197 reputation)Supreme Being (197 reputation)Supreme Being (197 reputation)Supreme Being (197 reputation)Supreme Being (197 reputation)Supreme Being (197 reputation)Supreme Being (197 reputation)Supreme Being (197 reputation)Supreme Being (197 reputation)
Group: Forum Members
Posts: 43, Visits: 109
Che bello non esser cagato da nessuno Rolleyes
Dravis
Dravis
Supreme Being (3.2K reputation)Supreme Being (3.2K reputation)Supreme Being (3.2K reputation)Supreme Being (3.2K reputation)Supreme Being (3.2K reputation)Supreme Being (3.2K reputation)Supreme Being (3.2K reputation)Supreme Being (3.2K reputation)Supreme Being (3.2K reputation)
Group: Forum Members
Posts: 592, Visits: 1.9K
I have seen several functional composite oven builds, made from "hot-air type" old kitchen ovens ..  All the bits you need are there, except for a precise temperature control ..

This can be bought on DealExtreme or Ebay -- but you do need some electronics/electrics skills to get it to work ..  Also acute awareness of the dangers inherent in heating stuff in confined areas with mains voltage electricity .. BigGrin

Insulating the oven "Box" well will make the temperature control much better and save on the electricity build ..

Also build in a "door open" microswitch, that stops the fan and powers off the heating element, when opening the door(s)
(Not so much for safety, but to prevent the oven from trying to heat your workshop to 120 degrees C. when you forget to close the door  .. w00t)

"Sapere Aude"... Dare to KNOW!

The written word is the only truly efficient vehicle for transmitting a complex concept from mind to mind...

103% of all people do not understand statistics...

Do not adjust our mind, theres a fault in reality :-)
Davidpetty1988
Davidpetty1988
Supreme Being (150 reputation)Supreme Being (150 reputation)Supreme Being (150 reputation)Supreme Being (150 reputation)Supreme Being (150 reputation)Supreme Being (150 reputation)Supreme Being (150 reputation)Supreme Being (150 reputation)Supreme Being (150 reputation)
Group: Forum Members
Posts: 26, Visits: 89
Hi am loving the idea of a homemade composites oven
I got given an old oven and have purchased a pid temp controller
A k type thermocouple and a SSR and also a 1500watt element.
I will be doing prepreg vacuum parts in it what else do I need to complete my oven many thanks in advance
Dave
